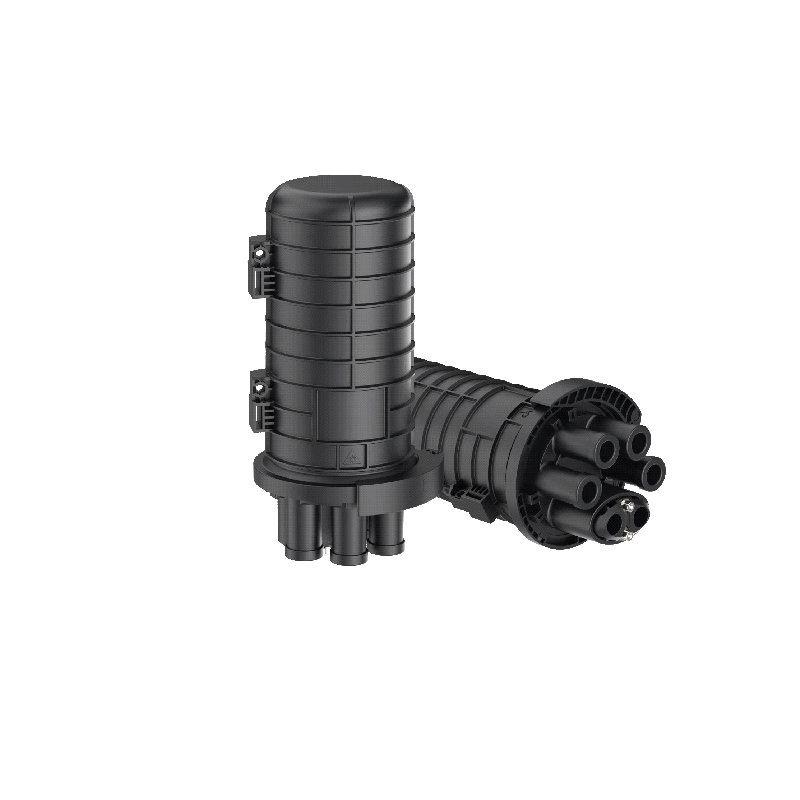

LitJTP‑180J‑C104‑V104 Dome‑Base Closure
Product Overview
The LitJTP‑180J‑C104‑V104 is a dome‑base fiber optic splice closure adopting mechanical sealing design for outdoor fiber network splicing and protection. It is built with high‑strength modified polypropylene material, equipped with flexible grommets to adapt to various standard cables. This closure supports mid‑span, branch and direct splicing operations, and is applicable for duct, aerial, man‑hole, wall, pole and wire‑mount installation environments. Complete supporting accessories are provided to satisfy diverse field deployment requirements, and rigorous testing is conducted to guarantee stable network operation.
Key Features
• Dome‑base design structure with mechanical sealing
• High‑strength modified polypropylene housing
• Mid‑span operation without cutting the main cable
• Flexible grommets for universal standardized cables
• Optimized internal fiber management layout
• Suitable for multiple outdoor installation scenarios
Fiber Splicing & Management
The LitJTP‑180J‑C104‑V104 closure supports maximum 48F single‑fiber splicing capacity, configured with 4 pieces of No. V1 splice trays. Each No. V1 splice tray provides 12F single‑fiber splicing capacity. Reasonable internal fiber routing protects splice joints, reduces fiber bending risk, and simplifies on‑site installation and daily maintenance work.
• Splice Capacity: 12F per tray
• Splice Trays: 4 pcs No. V1 splice tray
• Maximum Capacity: 48F single‑fiber splicing
• Cable Entry Specification: Oval hole Φ10‑18mm; Round hole Φ8‑14mm
Physical & Protection Performance
The mechanical sealing structure achieves reliable outdoor sealing performance for field fiber splicing. Multiple cable entry ports are reserved for different cable diameters, and abundant mounting structures support various outdoor installation methods.
• Sealing Mode: Mechanical sealing
• Dimensions: Φ180mm × 353mm (±5mm)
• Color: Black
• Mounting Type: Wall, pole, wire mounting
Applications
Suitable for:
• FTTH / FTTx outdoor fiber access and distribution networks
• Duct and aerial fiber cable installations
• Man‑hole deployment scenarios
• Wall‑mount, pole‑mount and wire‑mount outdoor splicing points
• Mid‑span, branch and direct fiber splicing projects
Construction
• Dimensions: Φ180mm × 353mm (±5mm)
• Color: Black
• Structure: Dome‑base mechanical sealing fiber splice closure
• Standard accessories: 48 pcs fiber splice protective sleeve, 16 pcs nylon cable tie, 2m bare fiber protective sleeve, 2 pcs branch clamp nut, 2 pcs Φ10‑14mm sealing plug for branch cable, 1 pc wrench for branch clamp nut, 1 pc Allen key, 1 pc Φ10‑14mm double‑hole sealing plug for mid‑span cable, 2m insulation tape, 1 set wall mounting kit
• Optional accessories: Φ14‑18mm double‑hole sealing plug for mid‑span cable, 2 pcs branch clamp nut, 2 pcs Φ10‑14mm sealing plug for branch cable, 1 set pole mounting kit, 1 set wire mounting kit
Network Reliability
The LitJTP‑180J‑C104‑V104 dome‑base closure combines robust modified polypropylene housing, proven mechanical sealing system, flexible cable entry grommets and systematic fiber management. It offers durable and secure protection for outdoor fiber splicing joints, ensuring long‑term stable performance for FTTx outdoor fiber optic distribution networks.
