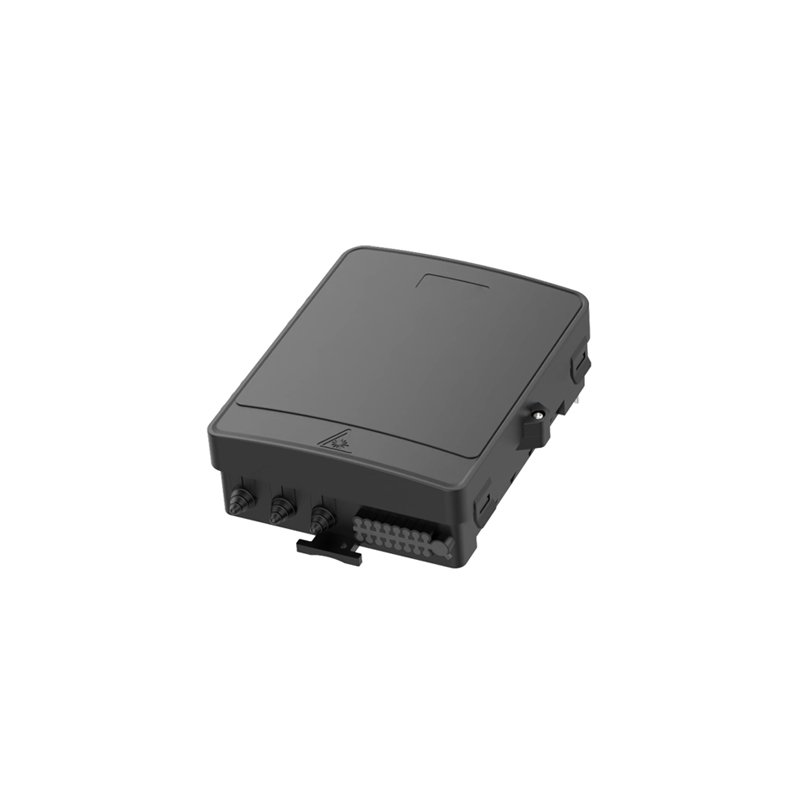

LitDP‑413B Fiber Distribution Box
Product Overview
The LitDP‑413B is a subscriber‑oriented optical fiber access box developed for FTTH network construction. It serves as a protected transition access point between distribution cables and drop cables, and supports pre‑installation of optical splitters inside the enclosure. This unit is designed for outdoor deployment and can be flexibly installed on walls or poles to complete fiber splitting and subscriber‑end cable termination for FTTx access networks.
Key Features
• Beautiful and compact model for convenient installation
• Nontoxic material with non‑corrosive metal components
• Compatible with different types of optical cables
• Neat internal fiber routing management
Fiber Splicing & Management
The LitDP‑413B fiber distribution box provides maximum 24F splicing capacity and maximum 16F termination capacity. It supports configurable micro‑type splitters of 2 × 1:8 or 1 × 1:16. The internal structural layout realizes orderly fiber routing, protects splice points and splitter ports, and simplifies field installation and maintenance work.
• Splice Capacity: Max. 24F total
• Adapter Compatibility: Max. 16 SC adapters
• Configurable Splitter: 2 × 1:8 or 1 × 1:16 micro‑type splitter
• Cable Port Specification: A pair of mid‑span cables Φ6‑14mm; one branch cable Φ6‑14mm; 16 drop cables 2×3mm
Physical & Protection Performance
The rugged enclosure is designed for outdoor working conditions, reserving dedicated ports for mid‑span cable, branch cable and drop cable. It is equipped with installation structures to support wall‑mount and pole‑mount deployment.
• Dimensions (H × W × D): 237.5mm × 204mm × 77mm (±5mm)
• Mounting Type: Wall, pole mounting
Applications
Suitable for:
• FTTH / FTTx outdoor subscriber fiber access networks
• Transition connection between distribution cable and drop cable
• On‑site deployment with pre‑installed optical splitter
• Wall‑mount and pole‑mount outdoor fiber distribution points
Construction
• Dimensions (H × W × D): 237.5mm × 204mm × 77mm (±5mm)
• Structure: Compact outdoor fiber distribution box with splitter holder and turnover board
• Standard accessories: 3 pcs hose clamp,17 pcs fiber splice protective sleeve,5 pcs nylon cable tie,2 set drop cable clip (for 16 drop cables),0.5m bare fiber protective sleeve,1 pc resealable bag,1 set wall mounting kit
• Optional accessories: 1 set pole mounting kit
Network Reliability
The LitDP‑413B fiber distribution box adopts non‑toxic housing material and non‑corrosive metal accessories, together with well‑planned fiber routing design. It offers reliable physical protection for optical splitters, splice joints and subscriber drop‑cable interfaces, ensuring stable signal transmission for outdoor FTTH subscriber access networks.
